Server and Client Send Actual Sensor Data over Network using Raspberry Pi¶

objective¶

In this Experiment we shall learn to create our own server and client with raspberyy pi uisng python Socket Programming.

Our Tagrget is to create a server. the server would be Running 24x7 on Raspberry pi and server is always listening for request from client When a client request server it shall send the Temperature and Humidty over Network using Socket Programming

Video Tutorial can be found below link¶

In [17]:

from IPython.display import YouTubeVideo
YouTubeVideo('QihjI84Z2tQ')

Out[17]:

Getting Started with Raspberry pi¶

In [21]:

from IPython.display import YouTubeVideo
YouTubeVideo('qL2ClHYEuog')

Out[21]:

Connection Diagram¶

In [14]:

%%html
<img src="http://www.circuitbasics.com/wp-content/uploads/2015/12/How-to-Setup-the-DHT11-on-the-Raspberry-Pi-Three-pin-DHT11-Wiring-Diagram.png" , width=600, height=300>

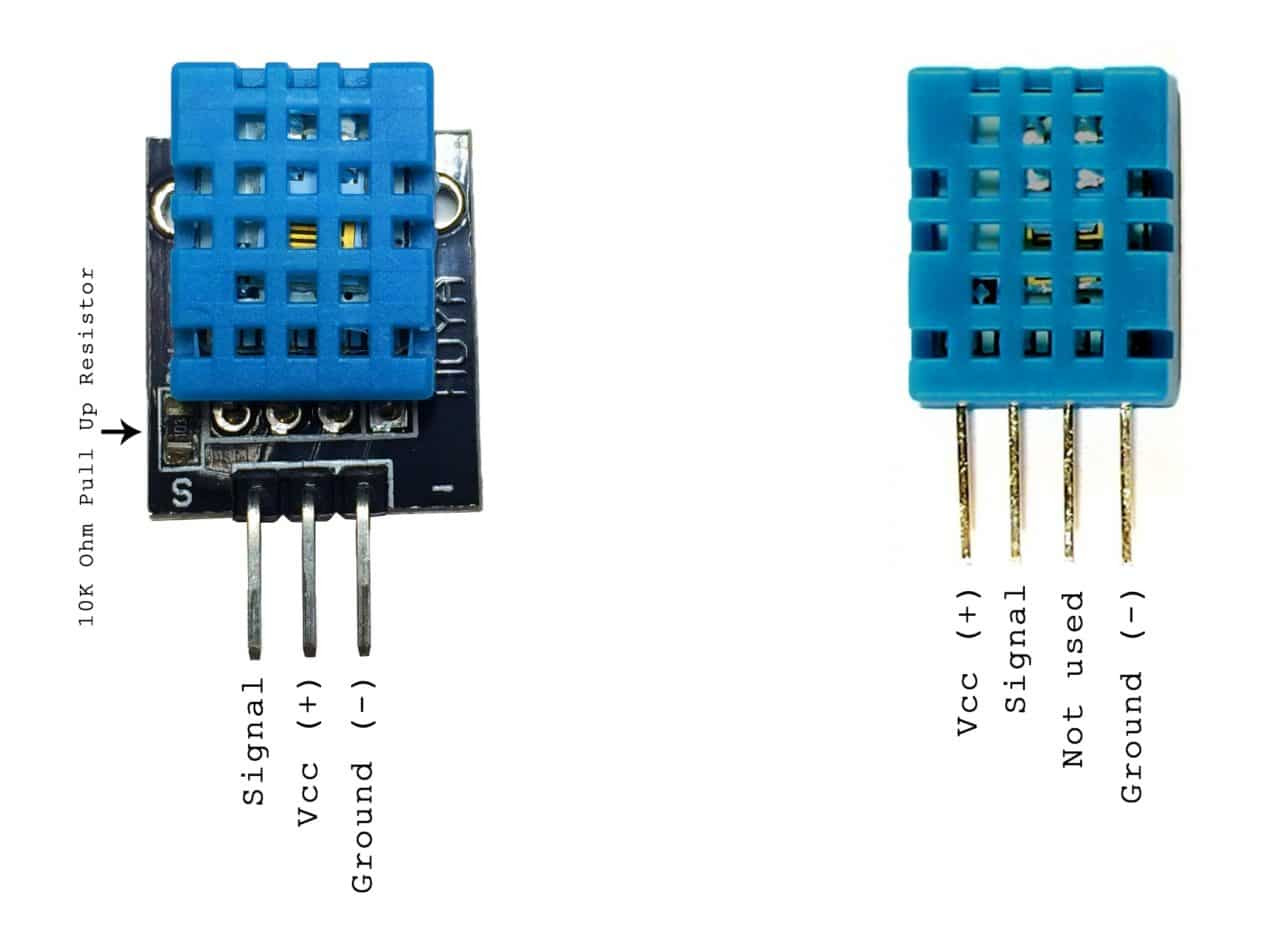

DHT Pinout¶

In [15]:

%%html
<img src="http://www.circuitbasics.com/wp-content/uploads/2015/12/DHT11-Pinout-for-three-pin-and-four-pin-types-2.jpg" , width=600, height=300>

Step 1: Create Server¶

Define the Library

In [2]:

import socket
import numpy as np
import encodings

Define the HOST and PORT

In [ ]:

HOST = '127.0.0.1'  # Standard loopback interface address (localhost)
PORT = 65432        # Port to listen on (non-privileged ports are > 1023)

For the Experiment we shall send Dummy Data and then once we know the concept we can send actual Sensor value over the socket programming.

Define the function which will send dummy data when client sends request¶

In [ ]:

def random_data():

    x1 = np.random.randint(0, 55, None)         # Dummy temperature
    y1 = np.random.randint(0, 45, None)         # Dummy humidigy
    my_sensor = "{},{}".format(x1,y1)
    return my_sensor                            # return data seperated by comma

Define the actual server when client sends string Data it shall send Data¶

In [ ]:

def my_server():

    with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
        print("Server Started waiting for client to connect ")
        s.bind((HOST, PORT))
        s.listen(5)
        conn, addr = s.accept()

        with conn:
            print('Connected by', addr)
            while True:

                data = conn.recv(1024).decode('utf-8')

                if str(data) == "Data":

                    print("Ok Sending data ")

                    my_data = random_data()

                    x_encoded_data = my_data.encode('utf-8')

                    conn.sendall(x_encoded_data)

                elif  str(data) == "Quit":
                    print("shutting down server ")
                    break


                if not data:
                    break
                else:
                    pass

In [ ]:

if __name__ == '__main__':
    while 1:
        my_server()

Explanation¶

when client sends Data as a string server will send sensor data over the network

Entire Code for Server¶

In [ ]:

import socket
import numpy as np
import encodings

HOST = '127.0.0.1'  # Standard loopback interface address (localhost)
PORT = 65432        # Port to listen on (non-privileged ports are > 1023)


def random_data():

    x1 = np.random.randint(0, 55, None)         # Dummy temperature
    y1 = np.random.randint(0, 45, None)         # Dummy humidigy
    my_sensor = "{},{}".format(x1,y1)
    return my_sensor                            # return data seperated by comma




def my_server():

    with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
        print("Server Started waiting for client to connect ")
        s.bind((HOST, PORT))
        s.listen(5)
        conn, addr = s.accept()

        with conn:
            print('Connected by', addr)
            while True:

                data = conn.recv(1024).decode('utf-8')

                if str(data) == "Data":

                    print("Ok Sending data ")

                    my_data = random_data()

                    x_encoded_data = my_data.encode('utf-8')

                    conn.sendall(x_encoded_data)

                elif  str(data) == "Quit":
                    print("shutting down server ")
                    break


                if not data:
                    break
                else:
                    pass


if __name__ == '__main__':
    while 1:
        my_server()

Step 2: Write the Code for Client¶

Import library¶

In [ ]:

import socket
import threading
import time

Define the HOST and PORT¶

In [ ]:

HOST = '192.168.0.111'  # The server's hostname or IP address
PORT = 65432        # The port used by the server

we need to process the Data that server sends us lets us define a function for that¶

In [ ]:

def process_data_from_server(x):
    x1, y1 = x.split(",")
    return x1,y1

Write the Client Code¶

In [ ]:

def my_client():
    threading.Timer(11, my_client).start()

    with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
        s.connect((HOST, PORT))

        my = input("Enter command ")

        #my = "Data"

        my_inp = my.encode('utf-8')

        s.sendall(my_inp)

        data = s.recv(1024).decode('utf-8')

        x_temperature,y_humidity = process_data_from_server(data)

        print("Temperature {}".format(x_temperature))
        print("Humidity {}".format(y_humidity))

        s.close()
        time.sleep(5)

In [ ]:

if __name__ == "__main__":
    while 1:
        my_client()

Entire Client Code¶

In [ ]:

import socket
import threading
import time


HOST = '192.168.0.111'  # The server's hostname or IP address
PORT = 65432        # The port used by the server


def process_data_from_server(x):
    x1, y1 = x.split(",")
    return x1,y1


def my_client():
    threading.Timer(11, my_client).start()

    with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
        s.connect((HOST, PORT))

        my = input("Enter command ")

        #my = "Data"

        my_inp = my.encode('utf-8')

        s.sendall(my_inp)

        data = s.recv(1024).decode('utf-8')

        x_temperature,y_humidity = process_data_from_server(data)

        print("Temperature {}".format(x_temperature))
        print("Humidity {}".format(y_humidity))

        s.close()
        time.sleep(5)


if __name__ == "__main__":
    while 1:
        my_client()

Great Job try the Code and lets send Actual Sensor Data over Network¶

Server Code which will run on Raspberry pi¶

In [ ]:

import socket
import numpy as np
import encodings
import Adafruit_DHT


HOST = '192.168.1.4'  # Standard loopback interface address (localhost)
PORT = 65432        # Port to listen on (non-privileged ports are > 1023)


def random_data():
    pin = 4
    sensor = Adafruit_DHT.DHT22
    humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)

    if humidity is not None and temperature is not None:
        print('Temp={0:0.1f}*C  Humidity={1:0.1f}%'.format(temperature, humidity))
        print("data was written on database T{} H{}".format(temperature,humidity))
        data = '{},{}'.format(temperature,humidity)
        return data





def my_server():

    with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
        print("Server Started waiting for client to connect ")
        s.bind((HOST, PORT))
        s.listen(5)
        conn, addr = s.accept()

        with conn:
            print('Connected by', addr)
            while True:

                data = conn.recv(1024).decode('utf-8')

                if str(data) == "Data":

                    print("Ok Sending data ")

                    my_data = random_data()

                    x_encoded_data = my_data.encode('utf-8')

                    conn.sendall(x_encoded_data)

                elif  str(data) == "Quit":
                    print("shutting down server ")
                    break


                if not data:
                    break
                else:
                    pass


if __name__ == '__main__':
    while 1:
        my_server()

Client Code will be same as Above.¶
